BROWNELLS
BOLT LAPPING TOOLS

050806008274 080097070

Conception interchangeable offrant une pression de ressort constante pour un ajustement précis des récesses de verrouillage.

L'outil à ressort fournit une pression constante et directe pour maintenir les lugs de verrou carrés contre le récepteur pendant le lapping avec un abrasif en carbure de silicium de 600 à 800 grains. Offre de meilleurs résultats qu'une simple pression du pouce. Les manches filetées interchangeables s'adaptent aux actions populaires listées ci-dessous.

SPECIFICATIONS : 3¾" (9,5 cm) de long, ¾ lb. (340 g). Le set M14/M1A comprend un plongeur de grand diamètre et une poignée de lapping spéciale requise pour ces modèles. La manche Mauser Large s'adapte aux actions Mauser à grand anneau. La manche Mauser Small s'adapte aux actions Mauser à petit anneau. La manche Savage Small s'adapte aux actions Savage dans tous les calibres sauf Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) et Win Short Mag (WSM). La manche Savage Large s'adapte uniquement aux actions Savage en calibres RUM, RSUM et WSM. Le One Gun Set contient le corps de l'outil de verrou, le plongeur et la manche de la bonne taille pour le modèle indiqué. Le M14/M1A One Gun Set contient le corps de l'outil de verrou, un plongeur de grand diamètre, la manche de la bonne taille et un outil de lapping de verrou spécial unique aux modèles M14/M1A/M1 Garand uniquement. Le Kit contient tous les outils nécessaires pour lapper tous les modèles indiqués dans le tableau. */**Prix spécial, voir ci-dessous.

Plus...

Interchangeable Design Gives Constant Spring Pressure For Precise Mating Of Locking Lug Recesses

Spring-loaded tool gives constant, straight-back pressure to keep bolt lugs square against the receiver while lapping with 600 to 800 grit, silicon carbide abrasive. Provides better results than mere thumb pressure. Interchangeable threaded sleeves fit popular actions listed below.

SPECS: 3¾" (9.5cm) long, ¾ lb. (340 g). M14/M1A Set sleeve includes large diameter plunger and special lapping handle required for these models. Mauser Large sleeve fits large ring Mauser actions. Mauser Small fits small ring Mauser actions. Savage Small sleeve fits Savage actions in all calibers except Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM), and Win Short Mag (WSM). Savage Large sleeve fits Savage actions on ly in RUM, RSUM, and WSM calibers. One Gun Set contains bolt tool body, plunger, and correct size sleeve for model listed. M14/M1A One Gun Set contains bolt tool body, large diameter plunger, correct size sleeve, and special sleeve, and special bolt lapping tool unique to M14/M1A/M1 Garand only. Kit contains all tools necessary to lap all models listed in chart. */**Special price, see below.

Plus...

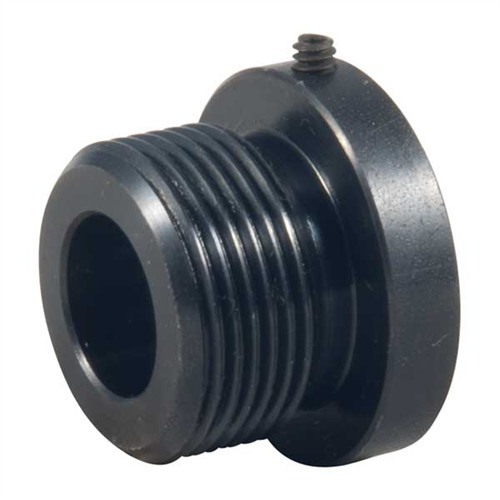

Évaluations client de BROWNELLS THREADED SLEEVE FOR WINCHESTER 70 ONLY

Nombre d'évaluations: 1
De brownells.com: 1
Note moyenne: 5

Very nice fit of parts. (31/08/2015)

I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.

Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.

I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.

Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.

Lire 1 plus d'avis sur brownells.com

29.9 329.9 17 EUR

Référence: 080097070
BROWNELLS THREADED SLEEVE FOR WINCHESTER 70 ONLY 050806008274 L'outil à ressort fournit une pression constante et directe pour maintenir les lugs de verrou carrés contre le récepteur pendant le lapping avec un abrasif en carbure de silicium de 600 à 800 grains. Offre de meilleurs résultats qu'une simple pression du pouce. Les manches filetées interchangeables s'adaptent aux actions populaires listées ci-dessous.

29.9 EUR 3 29,90 € *

Délai de livraison environ 14-21 jours.

Caractéristiques: Fabrication: Winchester Modèle: 70
